Features:
- Manufactured from 2mm 304 Stainless Steel
- Internal radiused corners and seamless joints in line with EHEDG guidance
MDS125-PE
Primary End - c/w Cell Bars, Structural/Locating Bars & Concrete Ties.
- Connects with Channel A only
- 125mm internal width
- 1,856mm overall length
- Start invert: 115mm
- End invert (inc. Type A outlet): 437mm
- End invert (inc. Type B outlet): 332mm

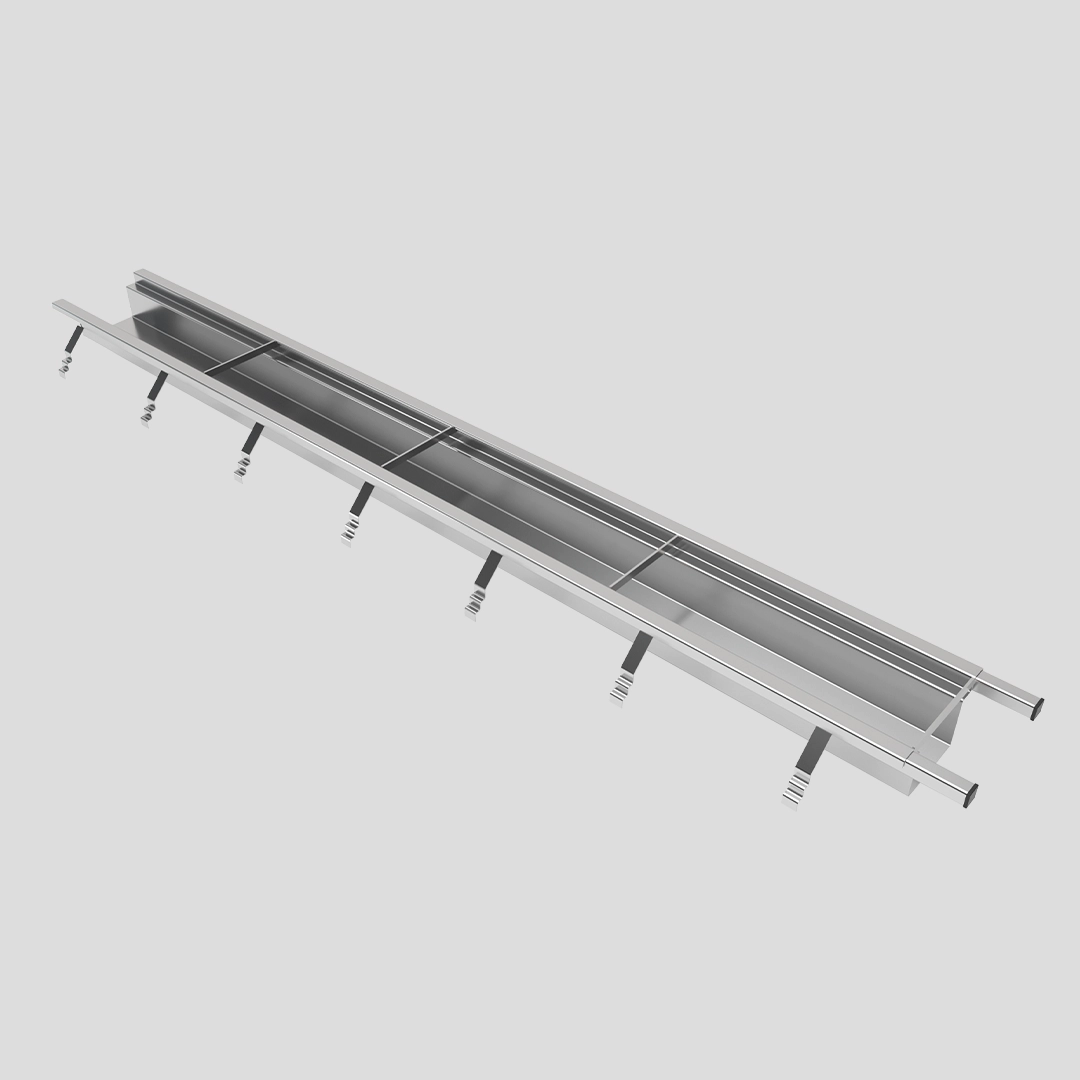

MDS125-A Channel Extension
Channel A - c/w Cell Bars, Structural/Locating Bars & Concrete Ties.
- Channel A is compatible with Primary End, Primary Central, Primary Tee and Primary 90 products only
- 125mm internal width
- 2,016mm overall length
- Start invert: 102mm
- End invert: 115mm

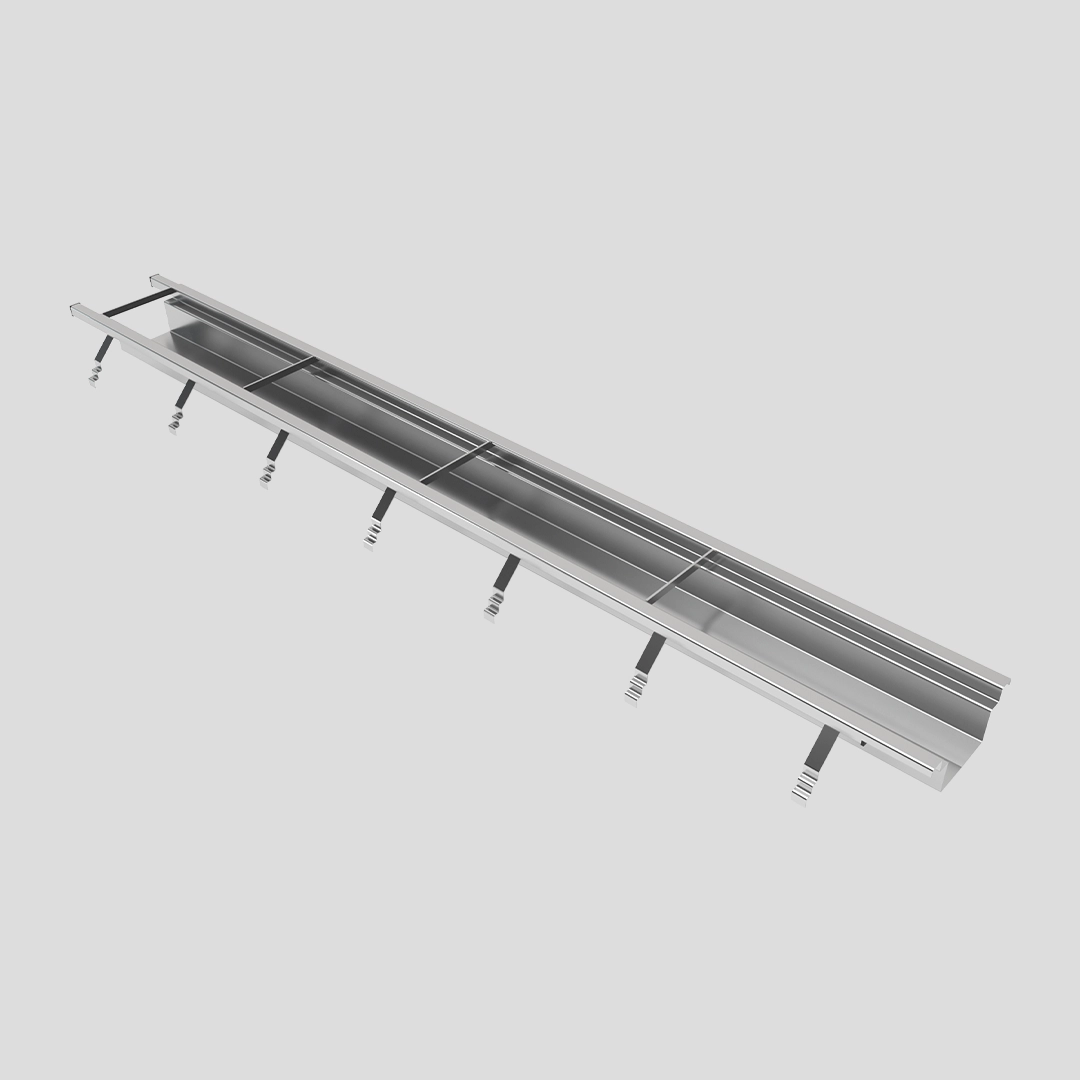

MDS125-B Channel Extension
Channel B - c/w Cell Bars, Structural/Locating Bars & Concrete Ties.
- Channel B is compatible with Channel A only
- 125mm internal width
- 2,016mm overall length
- Start invert: 88mm
- End invert: 102mm
MDS125-C Channel Extension
Channel C - c/w Cell Bars, Structural/Locating Bars & Concrete Ties.
- Channel C is compatible with Channel B only
- 125mm internal width
- 2,046mm overall length
- Start invert: 75mm
- End invert: 88mm
MDS125-PC
Primary Central - c/w Cell Bars, Structural /Locating Bars & Concrete Ties.
- Connects with Channel A only
- 125mm internal width
- 1,332mm overall length
- Start invert: 115mm
- End invert (inc. Type A outlet): 437mm
- End invert (inc. Type B outlet): 332mm
MDS125-PT
Primary Tee - c/w Cell Bars, Structural /Locating Bars & Concrete Ties.
- Connects with Channel A only
- 125mm internal width
- 1,332mm x 848mm overall lengths
- Start invert: 115mm
- End invert (inc. Type A outlet): 437mm
- End invert (inc. Type B outlet): 332mm
MDS125-P90
Primary 90° - c/w Cell Bars, Structural /Locating Bars & Concrete Ties.
- Connects with Channel A only
- 125mm internal width
- 848mm x 848mm overall lengths
- Start invert: 115mm
- End invert (inc. Type A outlet): 437mm
- End invert (inc. Type B outlet): 332mm
